How to make a homemade telescope using old camera lenses

I recommend gathering several discarded optical components, such as those from a broken photographic apparatus. The first step involves selecting the appropriate glass to achieve the desired magnification and clarity for stargazing or observing distant objects. Generally, a combination of a convex and a concave piece works best.

Secure these pieces in a sturdy cylindrical housing, allowing for complete control over alignment. A cardboard tube or PVC pipe can serve effectively here. Ensure to fix the lenses at the correct distances, usually dictated by their focal lengths, to optimize the image quality.

Consider adding a simple mount to keep your assembly stable. This can be improvised using wood or metal scraps. Incorporating a mechanism for adjusting the angle will enhance usability, facilitating observations at various times and positions. Attach an optional eyepiece, perhaps salvaged from another visual device, to refine your experience.

Conduct a few test observations to fine-tune the setup. Position your invention in a well-lit area during daylight, adjusting the lenses until you achieve a crisp view. Once satisfied with the results, venture outside and prepare for a night of exploration. This project not only opens up the cosmos but also gives new life to outdated equipment.

Building a Scope with Vintage Optics

Select two or more optics from an unused camera. Choose a longer focal length for the primary and a shorter for the eyepiece. This combination will provide the necessary magnification.

Materials Required

• Camera lens (primary)
• Camera lens (eyepiece)
• Tube (PVC, cardboard, or any sturdy material)
• Mounting brackets or tape
• Focusing mechanism (optional, for better clarity)

Assembly Steps

1. Attach the primary lens to one end of the chosen tube. Secure it firmly using brackets or strong adhesive.
2. Place the eyepiece lens inside the tube at a suitable distance from the primary lens. This distance usually depends on the focal lengths of both lenses.
3. If available, integrate a focusing mechanism to allow slight adjustments for clarity.
4. Seal any gaps between the tube and lenses to prevent light leaks.
5. Mount the entire assembly on a stable surface or tripod for viewing stability.

Test your creation against a distant object. Fine-tune the eyepiece position to achieve optimal focus. Enjoy your reflective observation of celestial bodies or landscapes!

Gathering Materials: What You Will Need

For this project, securing the right components is key. Here’s a precise list to help you get started:

Required Components

Additional Accessories

Labeled illustrations or schematics are beneficial for understanding assembly. Additionally, a notebook is useful for recording adjustments made during testing.

Choosing the Right Camera Lenses for Your Telescope

Select lenses with large apertures (f-stops). A lower f-stop number indicates better light-gathering capabilities, crucial for observing faint celestial objects. Look for prime lenses, as they typically offer superior optical quality compared to zoom variants.

Consider focal lengths. Longer focal lengths yield higher magnification, making them suitable for detailed lunar and planetary views. Shorter focal lengths are ideal for wide-field observations, capturing star clusters and nebulae. Aim for a combination that covers both types of observation.

Compatibility and Mounting

Check for thread sizes or mount types to ensure a secure fit with your chosen structure. Some lenses require adapters to connect properly to the body that will hold them. Always verify compatibility to avoid frustrating issues during assembly.

Type of Glass

Examine the glass quality. Lenses made from high-grade materials significantly reduce optical distortions. Look for multi-coated options, as they enhance light transmission and minimize reflections, providing clearer images.

Building the Telescope Tube: Step-by-Step Instructions

Select a sturdy material for the tube, such as PVC pipe or cardboard. The diameter should be wide enough to accommodate the chosen optics while maintaining a lightweight structure.

Measuring and Cutting

Measure the length based on the focal lengths of both the primary and secondary optical elements. Cut the selected material accurately using a saw or a sharp utility knife. Ensure edges are smooth to avoid any light interference or reflections.

Assembling the Tube

Join the pieces securely. For PVC, use appropriate adhesive or connectors. If you opted for cardboard, strong tape or glue will suffice. Ensure that the connections are firm to maintain the alignment of the elements inside.

To enhance stability, consider adding internal supports, especially if the structure is long. You can affix smaller tubes or strips of cardboard along the inside walls to keep everything aligned and supported.

Once assembled, apply a matte black paint inside the tube. This will absorb stray light and prevent reflections that can diminish image quality. Allow the paint to dry thoroughly.

Your constructed tube now sets the foundation for securing the optical components, ensuring optimal alignment for astronomical observations.

Focusing Mechanism: How to Adjust and Fine-Tune

To achieve sharp images, implement a sliding mechanism for the ocular component. A convenient option involves using a length of PVC or cardboard tubing to create a makeshift focusing system. Attach the eyepiece to one end of the tube and place it inside a larger tube. This allows for smooth movement along the primary optical element.

Secure the main lens at the opposite end with a firm but adjustable mount. This could be crafted from materials like rubber bands or foam, allowing for shifts in alignment without compromising stability. Ensure the primary unit is perfectly aligned perpendicular to the optical axis for optimal results.

Once everything is assembled, start by looking at a distant object and slowly adjust the eyepiece’s position. Incremental movements often yield the clearest focus. Patience is key; fine-tuning can require multiple adjustments.

Incorporate a locking mechanism to prevent accidental shifts once the desired focus is achieved. Simple clamps or screws can work effectively to hold the tube in place against further movement.

Regularly checking for alignment and focus during sessions will help maintain clarity. If images appear fuzzy, revisit your adjustments, as even slight deviations can impact observation quality. A small flashlight may aid in examining the alignments and ensuring no obstructions are present.

Creating a Stable Mount for Your Telescope

A sturdy support is vital for optimal viewing. I used a wooden tripod as my base, which provides both stability and ease of adjustment. Begin by selecting a durable material for the mount; plywood or MDF works well. Cut the platform to a size that suits your device, ensuring it’s wide enough to provide balance.

To attach the optical system, I fashioned a simple bracket from metal strips, securing it to the platform with screws. The bracket must allow for adjustable angles, facilitating easy repositioning of the optical assembly. Make sure the screws are tight to prevent unwanted movement.

The next phase involved adding a tightening mechanism. I installed a knob that controls the tilt of the assembly, allowing for smooth adjustments. Ensure it fits snugly to avoid slippage during observation sessions.

Additionally, consider adding rubber feet to the base of your mount. These will increase friction against any surface, minimizing wobble. Ultimately, aligning your assembly with both the balance and ease of use will enhance your stargazing experience.

Below is a table summarizing the materials required for the base construction:

Once the base is assembled, I always double-check the alignment and adjust as needed for a clear view. This approach not only improves durability but also enhances precision during use.

Assembling the Lenses: Proper Alignment Techniques

To achieve optimal performance from your optical components, precise alignment is critical. First, stack the optical elements on a flat surface, ensuring each element is clean and free from debris. I place the largest element at the back, creating a solid base for the following components.

Utilizing a straight edge or ruler can help maintain proper positioning. Align the optical axis of all elements to prevent distortion and achieve clearer images. If available, a collimator can further assist in aligning each element accurately along the optical path.

Testing and Adjusting Alignment

After initial assembly, conduct a simple test. Point the assembly at a distant object during the day and check for clarity. Any misalignment may become evident through distortion or blurred images. Make adjustments incrementally, loosening the elements carefully to realign them without causing damage.

Securing the Alignment

Once satisfied with the adjustments, secure each element in place. I recommend using non-permanent adhesive or tape initially, allowing for future modifications if necessary. Ensure that locking mechanisms or frame supports used do not interfere with the optical performance.

Testing Your Telescope: How to Find and Observe Objects

Begin by choosing a clear night with minimal light pollution. Ensure your optical instrument is stable and aimed towards an area of interest. For initial tests, the Moon is ideal due to its brightness and detail.

Locating Targets

Follow these steps for effective targeting:

• Use a smartphone app or star chart to identify constellations and celestial bodies.
• Select bright objects; planets like Jupiter and Venus are excellent starting points.
• Find a point of reference, such as nearby stars, to help you align your gear accurately.

Observation Techniques

Once your subject is within view:

• Slowly adjust focus to enhance clarity; small movements yield better results.
• Take notes or sketches of what you observe for future reference.
• Experiment with different eyepieces to change magnification and see various details.

For deeper astronomical observations, consider dedicating time to explore other celestial phenomena, such as star clusters or nebulae, as familiarity grows. This practice enhances understanding and appreciation of the cosmos.

Common Issues and How to Troubleshoot Them

If I encounter blurry images during observation, I check the alignment of the optics first. Misalignment can often lead to fuzziness. Adjust the positioning of the components to ensure everything is straight and correctly aligned.

Inconsistent focus can be frustrating. I find it useful to have a fine-tuning mechanism in place. If the mechanism feels stiff or unresponsive, consider lubricating it with a small amount of appropriate oil to facilitate smooth adjustments.

Light leaks are common in self-assembled optical devices. I inspect the tube for gaps or holes, then seal these areas with black tape or paint to prevent unwanted light from entering. This enhances contrast in observations significantly.

If images appear too dim, I evaluate the aperture size. A smaller opening can restrict light intake. I experiment by adjusting the aperture or using a different optic with better light-gathering capability for improved visibility.

Sometimes, I notice chromatic aberration, manifested as colorful fringes around objects. To minimize this, I consider using better-quality optics or layering filters that can correct color distortions. A doublet lens setup can also help address this issue.

Vibration or instability often disturbs the viewing experience. I reinforce the mount with additional support, such as weights or sturdier materials. If needed, I switch to a more stable surface for observing.

Finally, image distortion can stem from the quality of the glass. I assess each optical element for scratches or imperfections. If any lenses are damaged, replacing them can dramatically improve viewing quality.

Enhancing Your Telescope with Additional Features

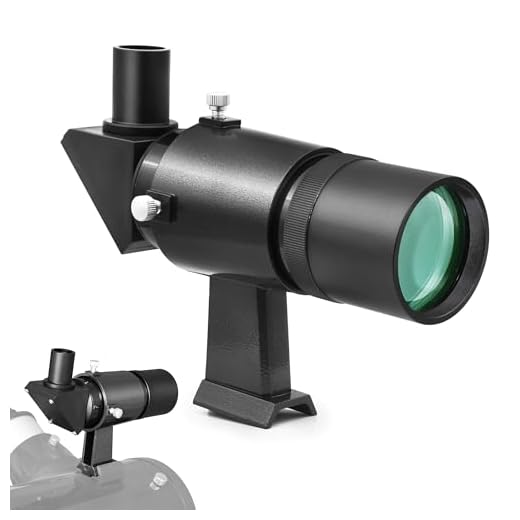

Consider adding an adjustable finder scope to improve target acquisition. It can be made from a smaller diameter lens or even a simple pair of binoculars mounted on a bracket. This will guide you to your intended celestial bodies more swiftly.

Incorporate a light shield or baffle to reduce stray light during observations. This can be crafted from black cardboard or felt and should be sized appropriately to fit within the optical tube without obstructing the main line of sight.

Implement a rotating mount for enhanced maneuverability. A lazy susan bearing can serve this purpose if attached securely. This will allow for smooth and easy tracking of objects across the sky.

Explore the possibility of integrating digital technology. Attach a smartphone or small camera with a focal adapter for astrophotography. This setup can help capture and document your observations, making the experience even more rewarding.

Adding a motorized tracking system can assist in maintaining alignment with celestial targets. Use small servo motors connected to an Arduino for automated movement. This can alleviate the need for constant manual adjustments during lengthy observations.

If interested in more intricate features, consider employing filters that can enhance visibility of certain astronomical phenomena. Color filters can help highlight specific details on planets, while a moon filter can reduce glare for clearer views.

Ensure to label your adjustments and modifications clearly. This practice will aid not only in understanding your setup but also in troubleshooting potential issues later on. A well-documented telescope enhances the overall experience.

Taking Care of Your Homemade Telescope: Maintenance Tips

Regular cleaning of the optical components is key. Use a microfiber cloth and lens cleaning solution to gently wipe the surfaces, ensuring no dust or fingerprints remain. Avoid using rough materials that could scratch the glass.

Check the alignment of the optics periodically. Misalignment can impact viewing quality. If necessary, use adjustments to realign the elements based on your observations.

Store your device in a dry, cool place to prevent moisture damage. Consider a protective case that cushions it from impacts and guards against dust accumulation.

• Inspect the mount and focusing mechanism for any signs of wear. Tighten any loose screws to maintain stability.
• Keep the exterior clean by wiping it down with a damp cloth, ensuring no dirt interferes with handling.
• Occasionally apply a small amount of lubricant to the moving parts of the focusing mechanism to ensure smooth operation.

Test the optical quality by observing celestial objects throughout different seasons to detect any compromise in clarity. If issues arise, revisit the assembly steps to ensure alignment and component integrity.

Evaluate the caps and covers of the optics. Ensure they are used when the instrument is not in use, preventing dust and scratches on the surfaces.

Regular check-ups on your equipment allow for early identification of potential issues, greatly enhancing your observing experience.
