Best nethod for running etherbet cabke to security cameras

As a professional in the field of security camera installation, I have come across various challenges when it comes to running Ethernet cables. Ensuring a reliable and stable connection is essential for the proper functioning of security cameras, and the method used for running the cables plays a crucial role in achieving this.

One of the best methods I have found for running Ethernet cable to security cameras is through the use of conduits. Conduits provide a protective pathway for the cables, shielding them from environmental factors such as weather and physical damage. In addition, conduits allow for easy access and maintenance of the cables, making troubleshooting and repairs much simpler.

Another effective method is the use of cable trays. Cable trays are a cost-effective solution that allows for the organization and support of multiple cables. By running Ethernet cables through cable trays, you can ensure that they are kept separate from other electrical cables, reducing the risk of interference and signal degradation. Cable trays also provide flexibility, allowing for easy reconfiguration and expansion of the security camera system.

Lastly, utilizing existing infrastructure such as walls or ceilings can be an efficient method for running Ethernet cable to security cameras. By concealing the cables within the structure of the building, you can achieve a clean and professional installation. However, it is important to consider the potential limitations and obstacles that may arise when using this method, such as the need for additional tools or expertise.

In conclusion, when it comes to running Ethernet cable to security cameras, the use of conduits, cable trays, or existing infrastructure can all be effective methods. The choice ultimately depends on the specific requirements of the installation and the level of protection and organization desired. By carefully considering these factors, you can ensure a reliable and efficient connection for your security camera system.

SGUESIKR 8 Pair Passive Video Balun BNC to RJ45 Adapter with Power, Ground Loop Isolated Cat5e Cat6 to BNC Converter, Analog Security Camera BNC to Ethernet Transceiver - Compact
SGUESIKR 8 Pair Passive Video Balun BNC to RJ45 Adapter with Power, Ground Loop Isolated Cat5e Cat6 to BNC Converter, Analog Security Camera BNC to Ethernet...
$61.00
$56.99
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Best Method for Running Ethernet Cable to Security Cameras

As a security professional, I have had extensive experience in setting up security camera systems and running Ethernet cables to connect them. In my opinion, the best method for running Ethernet cable to security cameras is to use a combination of surface-mounted conduits and hidden pathways.

First and foremost, it is important to plan the route of the Ethernet cable carefully. Take into consideration the shortest and most direct path from the security camera to the network switch or recorder. Avoid areas with high foot traffic or potential hazards that could damage the cable. Once the route is planned, the next step is to determine whether surface-mounted conduits or hidden pathways will be used.

Surface-Mounted Conduits

Surface-mounted conduits are a practical and cost-effective solution for running Ethernet cables. They are typically made of PVC or metal and can be easily attached to walls or ceilings using screws or adhesive. This method is ideal for situations where aesthetics are not a priority, such as industrial or commercial settings. Surface-mounted conduits provide protection for the Ethernet cable and make it easy to access and replace if needed.

Hidden Pathways

For residential or more aesthetically sensitive environments, hidden pathways are the preferred method. This involves running the Ethernet cable through walls, attics, or crawl spaces to conceal it from view. While this method requires more effort and expertise, it provides a clean and seamless appearance as the cable is hidden from sight. It is important to use cable clips or staples to secure the cable along the hidden pathway to prevent any potential damage.

In conclusion, the best method for running Ethernet cable to security cameras involves a combination of surface-mounted conduits and hidden pathways. By carefully planning the route and considering the specific environment, you can ensure a reliable and aesthetically pleasing installation that meets your security needs.

Lorex Technology Lorex CBL100C5RUW-4PK 100ft CAT5e Extension Cables,Fire Resistant and in-Wall Rated, CMR Type (Riser) (4-Pack)
Lorex Technology Lorex CBL100C5RUW-4PK 100ft CAT5e Extension Cables,Fire Resistant and in-Wall Rated, CMR Type (Riser) (4-Pack)
$58.99
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Determine the Optimal Camera Placement

When it comes to setting up a security camera system, one of the most important factors to consider is the placement of the cameras. Determining the optimal camera placement is crucial for ensuring effective surveillance and maximizing the coverage of the area you want to monitor. Here are some key considerations to keep in mind when deciding where to position your security cameras:

1. Identify high-risk areas

Start by identifying the high-risk areas on your property that require the most surveillance. These could include entrances, driveways, parking lots, and other vulnerable spots. By focusing on these areas, you can ensure that your cameras capture any potential threats or suspicious activities.

2. Assess the field of view

Before finalizing the camera placement, it’s important to assess the field of view of each camera. Consider the angle and range of the camera lens to determine the areas it can effectively cover. Make sure there are no obstructions that could hinder the camera’s view, such as walls, trees, or other objects. Adjust the camera angles accordingly to optimize the coverage.

3. Consider lighting conditions

Another crucial factor to consider is the lighting conditions in the areas where the cameras will be placed. Ensure that there is adequate lighting for clear visibility, especially during nighttime surveillance. If necessary, consider installing additional lighting fixtures or using cameras with built-in infrared capabilities for better performance in low-light conditions.

4. Hide or protect vulnerable cables

Once you have determined the optimal camera placement, it’s important to consider the cable routing and protection. Conceal the cables as much as possible to prevent tampering or vandalism. Use cable management solutions, such as conduit or cable covers, to protect the cables from environmental factors and potential damage.

Aimyzii BNC Cable 200ft 4 Pack BNC Video Power Cable,Security Camera Cable for CCTV Camera DVR Security Systems(Included 8X BNC Adapters,100 Pcs Cable Clips)-White
Aimyzii BNC Cable 200ft 4 Pack BNC Video Power Cable,Security Camera Cable for CCTV Camera DVR Security Systems(Included 8X BNC Adapters,100 Pcs Cable...
$59.99
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

By carefully considering these factors, you can determine the optimal camera placement for your security system, ensuring comprehensive coverage and effective surveillance.

Choose the Right Type of Ethernet Cable

When it comes to running Ethernet cable for security cameras, it is crucial to choose the right type of cable to ensure optimal performance and reliability. There are several types of Ethernet cables available, each with its own set of features and capabilities. It’s important to consider factors such as distance, data transfer speed, and environmental conditions when selecting the appropriate cable for your security camera setup.

See also  Where should i have security cameras in restaurants

Cat5e: Cat5e is a popular choice for Ethernet cables due to its affordability and capability to support data transfer speeds of up to 1000 Mbps. It is suitable for shorter distances and is commonly used for residential security camera installations. However, it may not be the best option for longer cable runs or installations in areas with high electromagnetic interference.

Cat6: Cat6 cables are an upgrade from Cat5e and offer higher data transfer speeds of up to 10 Gbps. They are better suited for longer cable runs and provide improved performance in environments with higher levels of interference. Cat6 cables are ideal for commercial security camera installations and locations where high-speed data transmission is required.

  • Cat6a: Cat6a cables are similar to Cat6 cables but provide even higher data transfer speeds and better resistance to crosstalk. They can support data rates of up to 10 Gbps over longer distances and are ideal for demanding security camera installations that require reliable and high-speed connectivity.

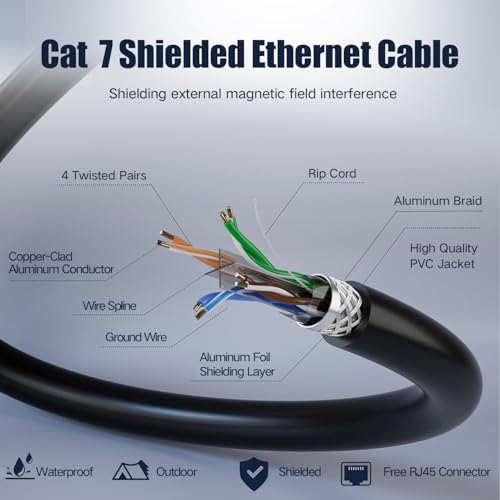

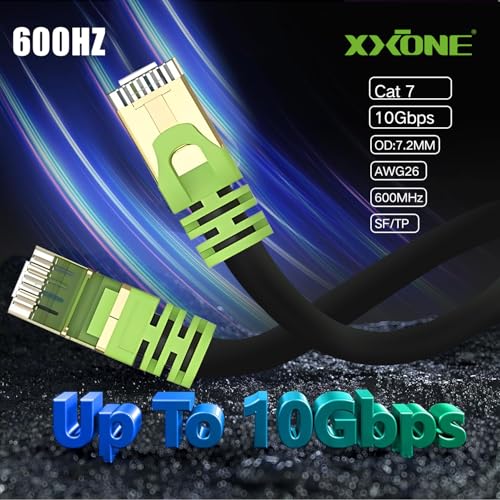

  • Cat7: Cat7 cables are designed to support data transfer speeds of up to 10 Gbps over distances of up to 100 meters. They offer better shielding and reduced crosstalk, making them suitable for installations in areas with high levels of interference. Cat7 cables are a top choice for professional security camera setups that require optimal speed and performance.

When selecting the right Ethernet cable for your security camera installation, it is essential to consider your specific requirements and the environmental conditions. Consulting with a professional or doing thorough research can help ensure you choose the most suitable cable for your needs, guaranteeing a reliable and efficient surveillance system.

Aimyzii BNC Cable 200ft 4 Pack BNC Video Power Cable,Security Camera Cable for CCTV Camera DVR Security Systems(Included 8X BNC Adapters,100 Pcs Cable Clips)-Black
Aimyzii BNC Cable 200ft 4 Pack BNC Video Power Cable,Security Camera Cable for CCTV Camera DVR Security Systems(Included 8X BNC Adapters,100 Pcs Cable...
$59.99
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Measure the Cable Length Needed

When it comes to running Ethernet cable to security cameras, it is important to accurately measure the cable length needed. This will help ensure that you have enough cable to reach each camera without excessive slack or the need for additional splices.

To measure the cable length needed, start by mapping out the locations of your security cameras. Take note of the distances between each camera and your network switch or recording device. This will give you an idea of the total length of cable required.

  • Measure the distance: Use a measuring tape or measuring wheel to measure the distance between each camera and your network switch. Be sure to account for any obstacles or detours the cable may need to take.
  • Add extra length: It is always a good idea to add some extra length to your measurements to account for any unforeseen circumstances. Adding an extra 10-15% to the total length should be sufficient.
  • Consider cable routing: Take into consideration the route the cable will need to take to reach each camera. Will it need to be run through walls, ceilings, or outdoor areas? This will help determine the amount of cable needed and any additional accessories, such as conduit or junction boxes, that may be required.

By accurately measuring the cable length needed, you can ensure that your security cameras are properly connected to your network switch or recording device. This will help optimize the performance and reliability of your security system.

Plan the Cable Path

When it comes to running Ethernet cable for security cameras, it is essential to carefully plan the cable path. This will ensure that the cameras are properly connected and the cables are hidden, minimizing the risk of tampering or damage.

First, assess the layout of your property and determine the locations where the security cameras will be installed. Consider factors such as the areas you want to monitor, the distance between cameras, and any obstacles that may affect the cable installation.

Tainston 4 Pack 200 Feet BNC Video Power Cable Wire Video Security Camera Wire with Connectors for CCTV Camera DVR Surveillance System
Tainston 4 Pack 200 Feet BNC Video Power Cable Wire Video Security Camera Wire with Connectors for CCTV Camera DVR Surveillance System
$60.89
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

1. Identify the Entry Points

Start by identifying the entry points where the Ethernet cables will enter the building. These are typically near the locations where the security cameras will be mounted. It is important to choose entry points that are inconspicuous and provide a secure connection to the cameras. Look for existing cable entry points, such as holes or conduits, or consider drilling new ones if necessary.

2. Plan the Cable Route

Next, plan the route for the Ethernet cables. Take into account the shortest and most direct path from the entry points to the camera locations. Avoid areas with high foot traffic or where the cables may be exposed to potential hazards. Consider running the cables along walls, ceilings, or through crawl spaces for a neater and more discreet installation.

Additionally, make sure to plan for any necessary cable extensions or connectors to reach the desired camera locations. This may involve measuring the required cable lengths and determining the appropriate connectors to use.

By carefully planning the cable path for your security cameras, you can ensure a professional and efficient installation that meets your surveillance needs while keeping the cables hidden and protected.

Consider External Factors

When running Ethernet cable to security cameras, it is important to consider external factors that may affect the performance and reliability of your system. These factors can include the distance between the cameras and the network switch, the presence of power lines or other sources of interference, and the environmental conditions in which the cables will be installed.

WildHD 4x200ft BNC Cable All-in-One Siamese Video and Power Security Camera Cable Extension Wire Cord with 2 Female Connectors for All Max 5MP HD CCTV DVR Surveillance System, 200ft 4pack Cable, Black
WildHD 4x200ft BNC Cable All-in-One Siamese Video and Power Security Camera Cable Extension Wire Cord with 2 Female Connectors for All Max 5MP HD CCTV DVR...
$62.99
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Distance: The distance between the cameras and the network switch can have a significant impact on the quality of the video feed. If the cameras are located far away from the switch, you may experience signal loss or degradation. In such cases, it may be necessary to use signal boosters or fiber optic cables to ensure a reliable connection.

Interference: Power lines and other sources of electromagnetic interference can disrupt the signal transmission over Ethernet cables. It is important to route the cables away from these sources or use shielding to minimize interference. Additionally, using shielded cables can help protect against interference from nearby electrical equipment.

Environmental Conditions: The environment in which the cables will be installed can also impact their performance and durability. If the cameras will be installed outdoors, it is important to use cables that are rated for outdoor use and can withstand exposure to harsh weather conditions. Additionally, if the cables will be installed in areas with high humidity or extreme temperatures, it may be necessary to take additional precautions to protect them.

See also  Best resolution for outdoor security cameras

By considering these external factors and taking appropriate measures, you can ensure that your Ethernet cables provide a reliable and high-quality connection for your security cameras.

Use Conduits or Cable Channels

When it comes to running ethernet cable for security cameras, using conduits or cable channels is a highly recommended method. These solutions provide a safe and organized way to protect and conceal the cables, ensuring a clean and professional installation.

BNC Cable, 200ft 4Pack All-in-One Siamese Video and Power Security Camera Wire Cord with 2 Female Connectors for All Max 5MP HD CCTV DVR Surveillance System
BNC Cable, 200ft 4Pack All-in-One Siamese Video and Power Security Camera Wire Cord with 2 Female Connectors for All Max 5MP HD CCTV DVR Surveillance System
$62.99
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Conduits are tubes made of plastic or metal that can be easily mounted on walls or ceilings. They provide a dedicated pathway for the ethernet cables, protecting them from physical damage and reducing the risk of interference. Conduits also make it easier to manage and organize the cables, as they can be easily labelled and separated.

Another option is to use cable channels, which are adhesive strips that can be attached to walls or other surfaces. Cable channels are a more discreet solution compared to conduits, as they blend in with the surroundings. They also offer flexibility in terms of cable routing, as they can be easily cut to desired lengths and mounted in different configurations.

Both conduits and cable channels are effective in preventing cable tangling and tripping hazards, ensuring a neat and professional appearance. They also provide additional protection against environmental factors such as moisture and UV exposure, which can potentially damage the cables. By using conduits or cable channels, you can ensure a reliable and long-lasting installation for your security cameras.

Use Ethernet Cable Clips for a Neat Installation

When it comes to running Ethernet cables for security cameras, one of the best methods for achieving a clean and organized installation is by using Ethernet cable clips. These clips provide a simple and efficient solution for securing your cables in place, ensuring that they are neatly arranged and easy to manage.

Ethernet cable clips are designed to hold the cables securely against a surface, such as a wall or ceiling. They typically feature adhesive backing, making them easy to install without the need for drilling or additional hardware. With these clips, you can route your Ethernet cables along the desired path and keep them neatly organized, preventing any unnecessary tangling or clutter.

By using Ethernet cable clips, you can not only achieve a professional-looking installation but also improve the overall performance and longevity of your security camera system. The clips help to protect the cables from potential damage, such as being accidentally pulled or snagged, which can disrupt the signal transmission and compromise the functionality of your cameras.

When installing Ethernet cable clips, it is important to plan the cable routing beforehand to ensure the most efficient and organized layout. You can use a combination of straight and angled clips to navigate corners and obstacles, allowing you to create a clean and streamlined cable installation.

In conclusion, using Ethernet cable clips is an excellent method for running Ethernet cables to security cameras. These clips provide a neat and organized installation, protecting the cables and improving the overall performance of your security camera system. With their easy installation and versatility, Ethernet cable clips are a must-have accessory for any security camera installation project.

Test the Cable Connection

Once the Ethernet cable is run to the security camera, it is important to test the connection to ensure it is working properly. Testing the cable connection will help identify any potential issues or faults that may affect the camera’s performance.

To test the cable connection, I recommend using a network cable tester. This device can detect any wiring faults, such as open circuits, short circuits, or incorrect wiring. Simply connect one end of the tester to the camera’s Ethernet port and the other end to the network switch or router. The tester will then indicate if the cable connection is working correctly or if there are any issues that need to be addressed.

Another way to test the cable connection is by using a network analyzer tool. This tool allows you to monitor the network traffic and check for any errors or disruptions. By connecting the analyzer to the camera’s Ethernet port and observing the network activity, you can ensure that the cable connection is stable and reliable.

It is also important to check the cable for any physical damage or wear. Inspect the cable for any cuts, bends, or frayed ends that may affect the signal transmission. If any damage is found, it is recommended to replace the cable to ensure optimal performance.

In conclusion, testing the cable connection is a crucial step in the installation process of security cameras. By using a network cable tester, network analyzer tool, and inspecting the cable for physical damage, you can ensure that the connection is reliable and the cameras will function properly.

Secure and Protect the Cable

Now that you have successfully run the Ethernet cable to your security cameras, it is important to ensure its security and protection. Here are some steps you can take to achieve this:

  • Conceal the cable: Hide the cable as much as possible to make it less noticeable and more difficult to tamper with. You can use cable concealment options such as conduit, cable trays, or even bury the cable underground.
  • Use cable protection devices: Install cable protection devices such as cable guards or conduits to prevent accidental damage or intentional sabotage.
  • Secure cable connections: Use secure connectors and properly terminate the cable connections to ensure a reliable and secure transmission of data.
  • Implement surge protection: Install surge protectors or surge protection devices to safeguard the cable and connected equipment from power surges or lightning strikes.
  • Regular maintenance: Perform regular maintenance checks to inspect the cable for any signs of wear or damage. Replace any damaged sections promptly to maintain the integrity of the cable.
See also  Best outdoor security camera anyo

In conclusion, securing and protecting the Ethernet cable for your security cameras is essential to ensure the integrity and reliability of your surveillance system. By concealing the cable, using cable protection devices, securing cable connections, implementing surge protection, and performing regular maintenance, you can ensure the longevity and effectiveness of your security camera setup.

Best nethod for running etherbet cabke to security cameras

WildHD 4x200ft BNC Cable All-in-One Siamese Video and Power Security Camera Cable Extension Wire Cord with 2 Female Connectors for All Max 5MP HD CCTV DVR...

$62.99
PRIMEPRIME
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Features

Part Number ShenZhen
Model 4335041501
Color Black
Size 4x200ft bnc cable black






Aimyzii BNC Cable 200ft 4 Pack BNC Video Power Cable,Security Camera Cable for CCTV Camera DVR Security Systems(Included 8X BNC Adapters,100 Pcs Cable...

$59.99
PRIMEPRIME
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Features

Part Number AIBNW4-200
Model AIBNW4-200
Color 4 PK
Size 200 FT






Aimyzii BNC Cable 200ft 4 Pack BNC Video Power Cable,Security Camera Cable for CCTV Camera DVR Security Systems(Included 8X BNC Adapters,100 Pcs Cable...

$59.99
PRIMEPRIME
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Features

Part Number AIBNB4-200
Model AIBNB4-200
Color 4 PK
Size 200 FT






BNC Cable, 200ft 4Pack All-in-One Siamese Video and Power Security Camera Wire Cord with 2 Female Connectors for All Max 5MP HD CCTV DVR Surveillance System

$62.99
PRIMEPRIME
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Features

Part Number WildvisionHD
Model 5823825484
Color Black
Size 4 feet






Tainston 4 Pack 200 Feet BNC Video Power Cable Wire Video Security Camera Wire with Connectors for CCTV Camera DVR Surveillance System

$60.89
PRIMEPRIME
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Features

Part Number TAN3907
Model TAN3907
Color Black
Size 200FT






FIVE STAR Cable 500 ft. RG59 Siamese CCTV Combo Coaxial Cable - 20AWG RG59 Video + 18/2 18AWG Power for Surviellance Security System (500 Ft, White)

$72.95
PRIMEPRIME
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Features

Part Number 5S0033/CW500/E(se)
Model 4452496
Color White
Size 500 Ft






Lorex Technology Lorex CBL100C5RUW-4PK 100ft CAT5e Extension Cables,Fire Resistant and in-Wall Rated, CMR Type (Riser) (4-Pack)

$58.99
PRIMEPRIME
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Features

Part Number CBL100C5-4pk
Model CBL100C5-4pk
Color Grey
Size 100 feet






RG59 Siamese Cable 300ft - Coaxial CCTV Video & Power Cable - Combo Coax 20AWG Security Camera Wire - Direct Burial - Outdoor & Indoor RG59 Cable

$79.89
PRIMEPRIME
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Features

Part Number cac-r591a-cel06
Model cac-r591a-cel06
Size 500 feet



Price history for RG59 Siamese Cable 300ft - Coaxial CCTV Video & Power Cable - Combo Coax 20AWG Security Camera Wire - Direct Burial - Outdoor & Indoor RG59 Cable
Latest updates:
  • $69.89 - September 30, 2024
  • $74.89 - September 30, 2024
  • $69.89 - August 21, 2024
  • $74.89 - July 19, 2024
Since: July 19, 2024
  • Highest Price: $74.89 - July 19, 2024
  • Lowest Price: $69.89 - August 21, 2024




SGUESIKR 8 Pair Passive Video Balun BNC to RJ45 Adapter with Power, Ground Loop Isolated Cat5e Cat6 to BNC Converter, Analog Security Camera BNC to Ethernet...

$56.99 $61.00
PRIMEPRIME
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Features

Part Number IGM-PVP-GL-8PR
Model SG-PV-8PR-GL
Warranty 2 Year Manufacturer
Color Black






ZOSI 4 Pack 2MP 1080p HD-TVI Home Security Camera Outdoor Indoor 1920TVL,24PCS LEDs,80ft Night Vision, 90°View Angle, Weatherproof Outside Surveillance CCTV...

$79.99
Amazon.com
Amazon price updated: November 11, 2024 9:44 am

Features

Part Number 4AK-2611A-W-US
Model 4AK-2611A-W-US
Warranty Guaranteed for 2-year warranty & Free life-time Tech Support & 30-day money back guarantee.
Color 4 Cam
Release Date 2019-07-01T00:00:01Z
Size 4 Cam Only



Price history for ZOSI 4 Pack 2MP 1080p HD-TVI Home Security Camera Outdoor Indoor 1920TVL,24PCS LEDs,80ft Night Vision, 90°View Angle, Weatherproof Outside Surveillance CCTV Bullet Camera
Latest updates:
  • $79.99 - August 21, 2024
  • $67.99 - August 17, 2024
  • $79.99 - August 14, 2024
  • $67.99 - August 13, 2024
  • $79.99 - August 13, 2024
  • $67.99 - August 13, 2024
  • $79.99 - July 19, 2024
Since: July 19, 2024
  • Highest Price: $79.99 - July 19, 2024
  • Lowest Price: $67.99 - August 13, 2024



Questions and answers:

What is the best method for running ethernet cable to security cameras?

The best method for running ethernet cable to security cameras is to use a combination of wired and wireless connections. For the wired connection, you can use ethernet cables to directly connect the cameras to the network switch or router. This will provide a stable and reliable connection. For areas where it is difficult to run cables, you can use wireless access points or powerline adapters to extend the network signal and connect the cameras wirelessly.

Can I use Wi-Fi to connect security cameras?

Yes, you can use Wi-Fi to connect security cameras. However, it is recommended to use a wired connection whenever possible for a more stable and reliable connection. Wi-Fi signals can be affected by interference and distance, which may result in a degraded video quality or loss of connection. If you choose to use Wi-Fi, make sure to place the cameras within range of the Wi-Fi router and use a strong password to secure the network.

Should I use a PoE switch for my security cameras?

Using a PoE (Power over Ethernet) switch for your security cameras is a convenient and efficient option. PoE switches allow you to power the cameras and transmit data over a single ethernet cable, eliminating the need for separate power adapters. This simplifies the installation process and reduces cable clutter. However, if you already have a non-PoE switch, you can still use PoE injectors or PoE adapters to power the cameras.
